Home > products > Portable Backup Power Station > High magnification polymer lithium-ion automotive emergency starting power supply

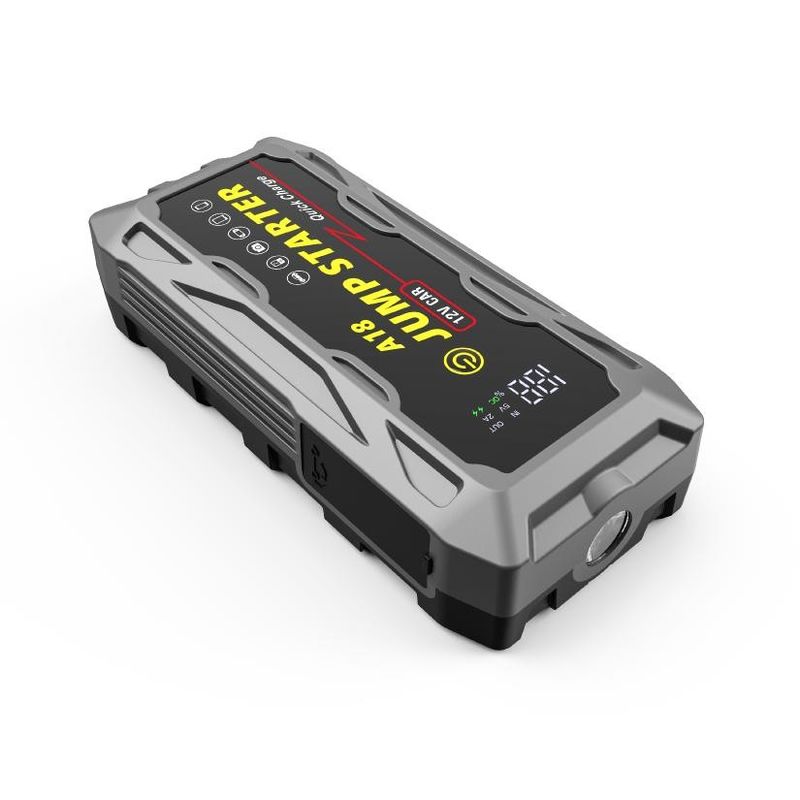

High magnification polymer lithium-ion automotive emergency starting power supply

Product Details

Brand Name: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD

Model Number: HD18

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price
Highlight:
Built-in Battery:
High Rate Polymer Lithium Battery
Battery Capacity:
20000mAh-74WH
Product Features:
Display &PD&QC3.0&DC Output
Power Features:
TYPE-C Charging Input /PD Output: 5V3A,/9V3A/12V3A/15V3A/20V5A 5V3A/9V3A/12V3A/15V3A,/20V5A USB1: QC3.0/5V3A/9V2A/12V1.5A USB2:5V/2A DC Output: 12V-16.8V8A
Starting Current:
500A/600A
Peak Current:
1000A/1200A
LED Lights:
Constant, Strobe, SOS
Lifecycle:
>1000 Times
Built-in Battery:
High Rate Polymer Lithium Battery
Battery Capacity:
20000mAh-74WH
Product Features:
Display &PD&QC3.0&DC Output
Power Features:
TYPE-C Charging Input /PD Output: 5V3A,/9V3A/12V3A/15V3A/20V5A 5V3A/9V3A/12V3A/15V3A,/20V5A USB1: QC3.0/5V3A/9V2A/12V1.5A USB2:5V/2A DC Output: 12V-16.8V8A
Starting Current:
500A/600A
Peak Current:
1000A/1200A
LED Lights:
Constant, Strobe, SOS
Lifecycle:
>1000 Times
High magnification polymer lithium-ion automotive emergency starting power supply

DESCRIPTION

Quick Details

1. PD66W bidirectional fast charging

2. Waterproofing

3. High power output

4. 0.05MA standby

5. 12V diesel and gasoline vehicles for general use

6. High capacity and endurance

7. Emergency lighting

8. Nine fold protection is effective

9. High magnification polymer lithium-ion batteries

10. 20000mAh

11. IC intelligent protection chip



Describe

HD18 is a portable, outdoor emergency, and long-lasting automotive emergency power supply that meets American AC power standards. It uses a high magnification polymer lithium-ion battery and is suitable for home emergency power, outdoor travel, emergency relief, and outdoor work.

The battery capacity of this product is 20000mAh, using an IC intelligent protection chip that intelligently matches the voltage and current of the car. The nine fold protection is effective (polymer lithium battery, constant current protection, voltage stabilization protection, overshoot protection, anti backflow protection, temperature protection, short circuit protection, overcurrent protection, and over discharge protection) to ensure battery stability. It is suitable for 12V diesel gasoline vehicles, regardless of vehicle type, fearless displacement, bidirectional fast charging, high-power output, and durable. Car refrigerators, car vacuum cleaners, and other car appliances can all be used.



General specifications

General specifications
Built-in battery High rate polymer lithium battery
Battery capacity 20000mAh-74WH
Product Features Display &PD&QC3.0&DC output
Power Features TYPE-C charging input /PD output: 5V3A,/9V3A/12V3A/15V3A/20V5A
5V3A/9V3A/12V3A/15V3A,/20V5A
USB1: QC3.0/5V3A/9V2A/12V1.5A
USB2:5V/2A
DC output: 12V-16.8V8A
Starting current 500A/600A
Peak current 1000A/1200A
LED Lights Constant, Strobe, SOS
lifecycle >1000 times
Fully charged time 3-4H
Shell material PC
Shell Flame retardant grade V0
Operating temperature -30℃-65℃
Product dimension 192*88*44mm(LWH)
Product net weight about 600g
Product color matching Can be freely matched by customers (quantity required)
Product packaging toolbox
Tool box dimension 20.5*22.5*5.5cm (LWH)
Accessories(Default) Intelligent jump cables





note

  1. Do not use emergency power sources for usage scenarios beyond their design range to prevent danger.
  2. During use, please avoid letting children or pets come into contact with the power supply and connecting wires to prevent electric shock hazards.
  3. Do not use emergency power supply in rainy or humid environments to prevent leakage accidents.
  4. Do not overcharge or discharge to prevent damage to the battery due to overcharging.
  5. If the battery needs to be replaced, please follow the instructions in the product manual and use the original battery or certified substitute to prevent accidents.

      6,Do not directly touch the leaking battery. Leaking electrolyte can cause skin discomfort. In case the electrolyte enters the eyes, rinse with clean water as soon as possible, do not rub the eyes, and promptly seek medical attention.





Application

Suitable for household emergency electricity use, outdoor travel, emergency relief, outdoor work, and other occasions.







frequently asked question

  • What is the delivery time?
  • Is there a minimum order quantity limit?
  • How to transport the goods and how long it will take for delivery?
  • How to handle orders for automotive emergency power supplies? (Requirements, quotations, samples, deposits, production)
  • Is it possible to label?
  • How long is the warranty period?
  • How to handle faults?

Answer: (1) Slow charging speed: It may be caused by aging or insufficient battery power. It is recommended to check the battery status and charge or replace the battery.

(2)Short battery life: It may be caused by improper or excessive use. It is recommended to use the emergency power supply correctly according to the instructions in the product manual and regularly maintain it.
