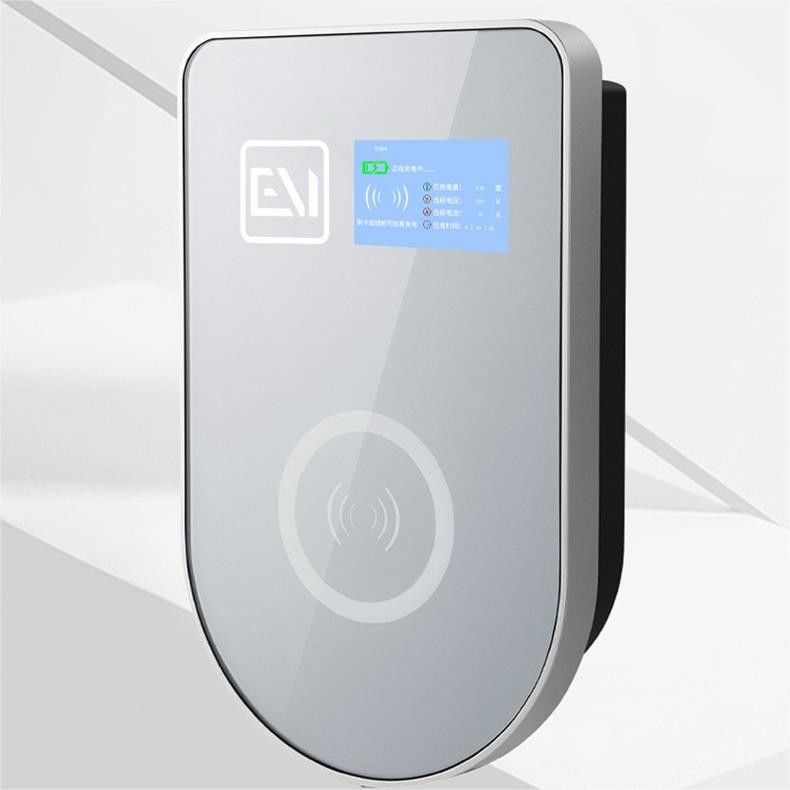

5m Cable Outdoor Charging Station For Car Wall Mounted AC380V

Name: 5m Cable Outdoor Charging Station For Car Wall Mounted AC380V
Brand: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD
SKU: HD-OB208
Availability: InStock

Product Details

Brand Name: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD

Model Number: HD-OB208

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                5m Cable Outdoor Charging Station For Car, Outdoor Charging Station For Car Wall Mounted, outdoor car charger plug AC380V


Installation Method:	Pillar/wall Mounted	Equipment Weight:	About 5.4KG
Cable Length:	5 Meters [supports Customized Line Length]	Input Voltage:	AC380V
Input Frequency:	50Hz/60Hz	Maximum Power:	22KW

Installation Method:	Pillar/wall Mounted
Equipment Weight:	About 5.4KG
Cable Length:	5 Meters [supports Customized Line Length]
Input Voltage:	AC380V
Input Frequency:	50Hz/60Hz
Maximum Power:	22KW

5m Cable Outdoor Charging Station For Car Wall Mounted AC380V

We usually export large quantities to foreign countries. Hope to find more trade partners.

Portable Outdoor Power Station HD-OB208, Wall Mounted, 22KW, 32A, 5m Cable

Product Description

1. Household wall mounted AC charging station, which can be installed with columns

2. Three color charging indicator light, indicating charging related values

3. Optional gold and silver glass panels, supporting customized panels

Describe

The HD-OB208 charging gun is a portable charging product that complies with the European Union's AC power consumption standards, with a rated maximum AC output power of 22KW and a weight of approximately 5.4KG. It is suitable for wall mounted household new energy charging stations and is convenient and fast.

General specifications

Detailed parameters			Parameter Details
Name and model			HD-OB208
Appearance structure		plug model	Separate wiring without plug
		product type	Swipe card activation
		Shell material	Gun Head - Control Box PC9330
		Equipment size	Gun head 230 * 98 * 70mm/control box 280 * 220 * 93mm [H * W * D]
		Installation method	Pillar/wall mounted
		Install components	Wall mounted screw accessories [can be installed with columns]
		Wiring method	Up in and down out
		Equipment weight	About 5.4KG
		Cable specifications	5*6mm² +0.75mm²
		Cable length	5 meters [supports customized line length]
Electrical indicators		input voltage	AC380V
		Input frequency	50Hz/60Hz
		maximum power	22KW
		output voltage	AC380V
		Output current	32A
		standby power	3W
Environmental indicators		usage scenarios	Indoor/Outdoor
		Working humidity	5% -95% non condensing
		working temperature	-30℃～+50℃
		Working altitude	<2000 meters
		Protection level	Gun head IP67/control box IP67
		Cooling method	Natural cooling
		Safety regulations and standards	SAEJ1772
		Flame retardant grade	UL94 V0
		Product Certification	TUV,CE,CB
Functional design		man-machine interface	LED indicator light
Functional design		communication interface	/
Packaging specifications		Box gauge/weight	505505298mm
safety design	Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, over temperature protection, leakage protection, grounding protection, lightning protection, electrostatic protection, flame retardant protectionretardant protection

Application

Suitable for American standard new energy vehicle home emergency electricity, outdoor travel, emergency relief, outdoor work and other occasions, charging anytime and anywhere.

Ergonomic design for comfortable grip, protection level IP67H62, brass nickel plated and silver plated high conductivity terminals

IP67

Gun head protection level.
