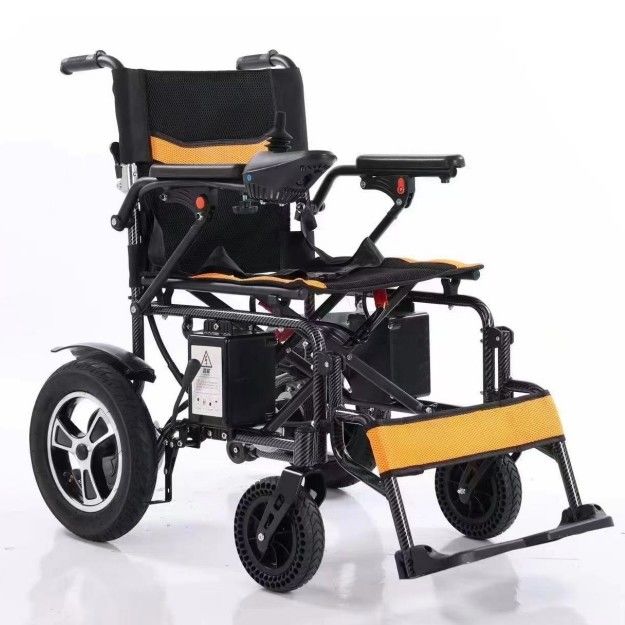

User Friendly Electric Wheelchair With Front And Back Speed Adjustment

Name: User Friendly Electric Wheelchair With Front And Back Speed Adjustment
Brand: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD
SKU: HD-DYW-01-9001B
Availability: InStock

Product Details

Brand Name: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD

Model Number: HD-DYW-01-9001B

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Front Speed Adjustment Electric Wheelchair, Back Speed Adjustment Electric Wheelchair, User-Friendly Electric Wheelchair


Front Wheel Size:	8"	Rear Wheel Size:	12"
Load Capacity:	100 Kgs	Backrest Height:	400 Mm
Seat Depth:	450 Mm	Seat Width:	450 Mm

Front Wheel Size:	8"
Rear Wheel Size:	12"
Load Capacity:	100 Kgs
Backrest Height:	400 Mm
Seat Depth:	450 Mm
Seat Width:	450 Mm

User Friendly Electric Wheelchair With Front And Back Speed Adjustment

We usually export large quantities to foreign countries. Hope to find more trade partners.

Product Description:

1. Frame: EThe whole vehicle frame is made of aluminum alloy material with ergonomic design and excellent workmanship. It has the advantages of reversible foot stand, adjustable armrest, folding structure and good safety performance. Surface paint processing glossy smooth feel good.
2. The backrest angle is completely designed according to the physiological curvature of the human waist, providing the best support for the human body.
3. The cushion is made of red and black mesh fabric with removable thick upper pad for easy cleaning.
4. The front wheel is made of 8-inch PVC honeycomb non-inflatable tires, and the rear wheel is made of 12-inch inflatable aluminum alloy wheels, equipped with a high safety anti-incline device.
5. The controller comes with Chinese and English voice function, which can check the fault by itself and inform the user in voice form. The front and back can be adjusted, and the left and right can be interchangeable.
6. Motor specification/quantity: 250W*2.
7. Battery type/specification/quantity: lead-acid battery /24V*12A (optional 24V*20A lithium battery)
8. Climb the maximum Angle: 10 degrees.
9. Charging time: 4 hours (24V12A lithium battery).
10. Turning radius: 1.2m.
11. Maximum speed: 6 km/h.
12. Brake system: electronic brake.
13. Endurance: 12-15 km.

General specifications:

Type	HD-DYW-01-8015
Front Tire Material	Non-inflatable tire aluminum alloy wheel
Rear Tire Material	Pneumatic tire
Surface Treatment	Spray or oxidation treatment
Front Wheel Size	10 inch
Rear Wheel Size	16 inch
Load Capacity	100 kgs
Backrest Height	50 cm
Seat Depth	50 cm
Seat Width	45 cm
Dimensions	11063130 cm
Motor Power	250W*2
Continuation Mileage	12 km
Climb through maximum Angle	10 °
Top Speed	6 km/h
Braking System	Electronic brake
Battery	24V 12Ah (Lead-acid batteries)
N. W.	43 kgs
G. W.	48 kgs

Our advantages:

User Friendly Electric Wheelchair With Front And Back Speed Adjustment 0

User Friendly Electric Wheelchair With Front And Back Speed Adjustment 1

Customer built is the first principle for us.
