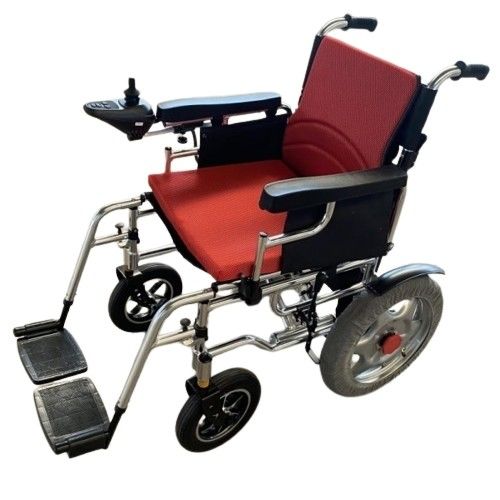

Thickened Aluminum Alloy Electric Wheelchair With Adjustable Armrest

Name: Thickened Aluminum Alloy Electric Wheelchair With Adjustable Armrest
Brand: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD
SKU: HD-DYW-01-8003E
Availability: InStock

Product Details

Brand Name: TIANJIN TOEC HUADIAN TECHNOLOGY CO., LTD

Model Number: HD-DYW-01-8003E

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Thickened Aluminum Alloy Electric Wheelchair, Aluminum Alloy Electric Wheelchair, Adjustable Armrest Electric Wheelchair


Front Wheel Size:	10"	Rear Wheel Size:	16"
Load Capacity:	100 Kgs	Backrest Height:	500 Mm
Seat Depth:	500 Mm	Seat Width:	450 Mm

Front Wheel Size:	10"
Rear Wheel Size:	16"
Load Capacity:	100 Kgs
Backrest Height:	500 Mm
Seat Depth:	500 Mm
Seat Width:	450 Mm

Thickened Aluminum Alloy Electric Wheelchair With Adjustable Armrest

We usually export large quantities to foreign countries. Hope to find more trade partners.

Product Description:

1. Frame: Ergonomic design. The frame is made of thickened aluminum alloy material, which greatly increases the service life and has excellent workmanship. It has the advantages of reversible foot stand, adjustable armrest, folding structure and good safety performance. Surface paint or oxidation treatment bright smooth feel good.
2. The backrest Angle is completely designed according to the physiological curvature of the human waist, providing the best support for the human body.
3. The cushion is made of black mesh fabric with removable thick upper pad for easy cleaning.
4. The front wheel is made of 10-inch PVC non-inflatable tire aluminum alloy, and the rear wheel is made of 16-inch inflatable tires, equipped with high safety performance anti-incline device.
5. The controller automatically adjusts the speed of the left and right motor, the front and back can be adjusted, the left and right can be interchangeable, and the voice prompt function.
6. Motor specification/quantity: 250W*2.
7. Battery type/specification/quantity: lead-acid battery /24V*12A (optional 24V*20A lead-acid battery)
8. Climb the maximum Angle: 10 degrees.
9. Charging time: 6 hours (24V12A battery).
10. Turning radius: 1.2m.
11. Maximum speed: 6 km/h.
12. Brake system: electronic brake.
13. Endurance: 12 km (24V12A lead-acid battery).

General specifications:

Type	HD-DYW-01-8003E
Front Tire Material	PVC non-inflatable tire aluminum alloy wheels
Rear Tire Material	Pneumatic tyre
Surface Treatment	Paint or oxidation treatment
Front Wheel Size	10 inch
Rear Wheel Size	16 inch
Load Capacity	100 kgs
Backrest Height	50 cm
Seat Depth	50 cm
Seat Width	45 cm
Dimensions	11063130 cm
Handrail height	25 cm
Motor Power	250W*2
Continuation Mileage	12 km
Climb through maximum Angle	10 °
Top Speed	6 km/h
Braking System	Electronic brake
Battery	24V 12Ah (Lead-acid batteries)
N. W.	46 kgs
G. W.	51 kgs

Our advantages:

Thickened Aluminum Alloy Electric Wheelchair With Adjustable Armrest 0

Customer built is the first principle for us.
